Infrastructure changes for ISTIO

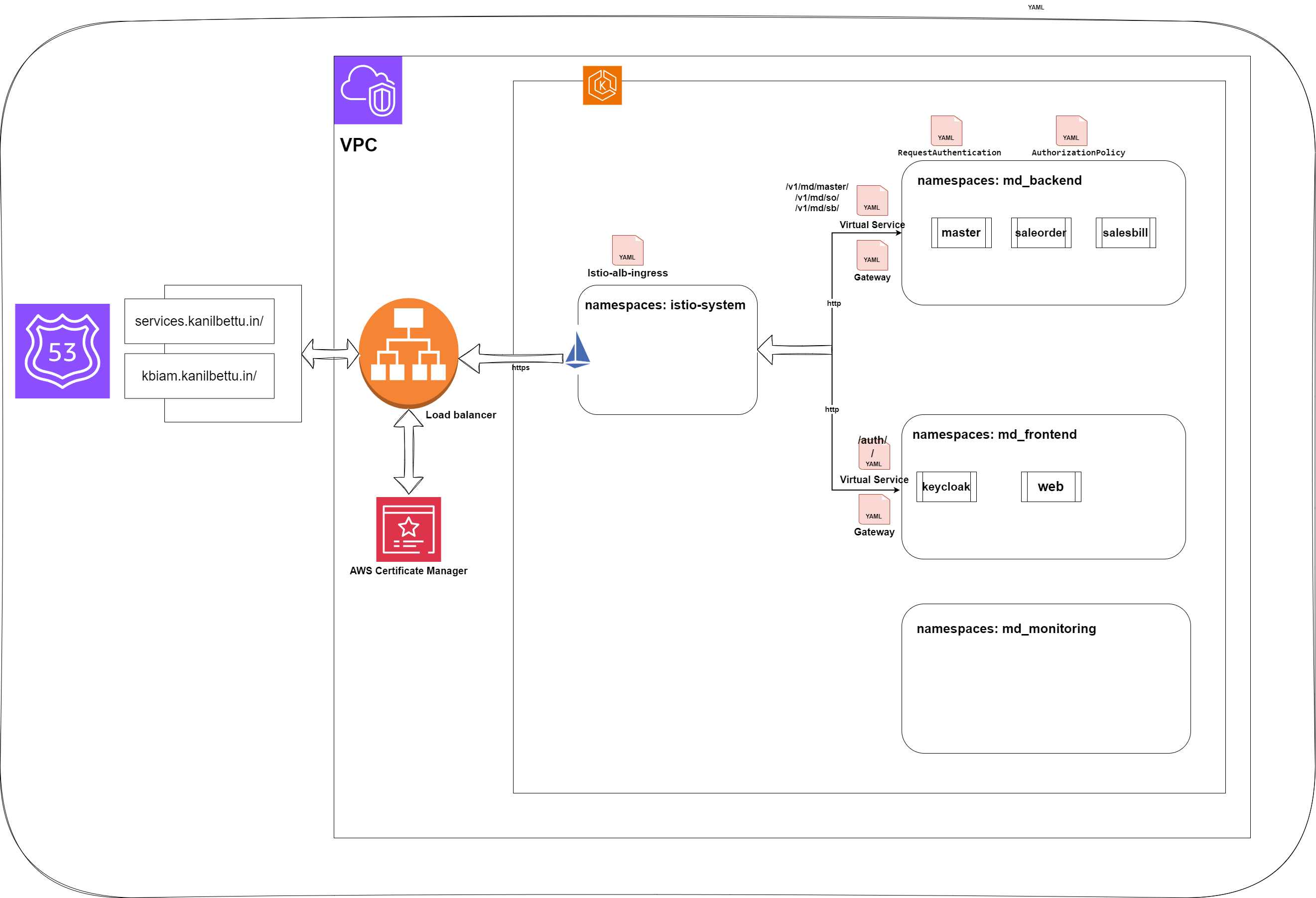

1 Architecture

2 Istio

2.1 Gateway

A gateway1 can be used to manage inbound and outbound traffic for mesh.
Gateway configurations are applied to standalone Envoy proxies that are running at the edge of the mesh, rather than sidecar Envoy proxies running alongside your service workloads.
Unlike other mechanisms for controlling traffic entering your systems, such as the Kubernetes Ingress APIs, Istio gateways let you use the full power and flexibility of Istio’s traffic routing.
Gateway resource allows to configure layer 4-6 load balancing properties such as ports to expose, TLS settings, and so on. Then instead of adding application-layer traffic routing (L7) to the same API resource, you bind a regular Istio virtual service2 to the gateway. This allows manage gateway traffic like any other data plane traffic in an Istio mesh.
The specification describes a set of ports that should be exposed, the type of protocol to use, SNI configuration for the load balancer, etc.
https://istio.io/latest/docs/reference/config/networking/gateway/#Gateway

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: istio-gateway
  namespace: services
spec:
  selector:
    istio: ingressgateway
  servers:
    - port:
        number: 80
        name: http
        protocol: HTTP
      # tls:
      #   mode: SIMPLE
      #   credentialName: "tls-secret"
      hosts:
        - "*"

2.2 Virtual Service

A virtual service lets us configure how requests are routed to a service within an Istio service mesh.
Each virtual service consists of a set of routing rules that are evaluated in order, letting Istio match each given request to the virtual service to a specific real destination within the mesh.
https://istio.io/latest/docs/concepts/traffic-management/#virtual-services

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: backend-servcies
  namespace: services
spec:
  hosts:
    - "*" # This will match any host header
  gateways:
    - istio-gateway
  http:
    - match:
        - uri:
            prefix: /v1/md/master/
      route:
      - destination:
          host: master-svc
          port:
            number: 80
    - match:
        - uri:
            prefix: /v1/md/so/
      route:
      - destination:
          host: saleorder-svc
          port:
            number: 80

2.3 Authentication

Istio provides two types of authentication:
- https://en.wikipedia.org/wiki/Mutual_authentication
- Peer authentication: used for secure service-to-service authentication to verify the client making the connection. Istio offers mutual TLS3 as a full stack solution for transport authentication, which can be enabled without requiring service code changes.
  ex:
  apiVersion: security.istio.io/v1beta1 kind: PeerAuthentication metadata: name: default namespace: services spec: mtls: mode: STRICT
Request authentication:
- Used for end-user authentication to verify the credential attached to the request. Istio enables request-level authentication with JSON Web Token (JWT) validation and a streamlined developer experience using a custom authentication provider or any OpenID Connect providers.

apiVersion: security.istio.io/v1beta1
kind: RequestAuthentication
metadata:
name: jwt-check-master
namespace: services
spec:
selector:
matchLabels:
app: master
jwtRules:
- issuer: https://kbiam.kanilebettu.in/auth/realms/kbt-india
jwksUri: https://kbiam.kanilebettu.in/auth/realms/kbt-india/protocol/openid-connect/certs
forwardOriginalToken: true
fromHeaders:
- name: Authorization   # Specify the header name where the JWT token is sent
# prefix: "Bearer "    # If your token has a prefix (e.g., "Bearer ")

2.4 Authorization

Istio’s authorization features provide mesh-, namespace-, and workload-wide access control for your workloads in the mesh. This level of control provides the following benefits:
- Workload-to-workload and end-user-to-workload authorization.
- A simple API: it includes a single AuthorizationPolicy CRD4, which is easy to use and maintain.
- Flexible semantics: operators can define custom conditions on Istio attributes, and use CUSTOM, DENY and ALLOW actions.
- High performance: Istio authorization ( ALLOW and DENY ) is enforced natively on Envoy.
- High compatibility: supports gRPC, HTTP, HTTPS and HTTP/2 natively, as well as any plain TCP protocols.
- https://istio.io/latest/docs/reference/config/security/authorization-policy/

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: user-check-master
  namespace: services
spec:
  selector:
    matchLabels:
      app: master
  rules:
    - from:
        - source:
            requestPrincipals: ["*"] # Allow any authenticated user

2.5 Ingress

Each ingress resource will create a public/private ALB based on the alb.ingress.kubernetes.io/scheme mentioned and a route record in the Route 53 public/private zone based on the ingress.kind in the configuration

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: eks-alb-public-ingress
  namespace: istio-system
  annotations:
    #kubernetes.io/ingress.class: alb
    alb.ingress.kubernetes.io/scheme: internet-facing
    #alb.ingress.kubernetes.io/target-type: ip
    alb.ingress.kubernetes.io/healthcheck-path: /healthz/ready
    alb.ingress.kubernetes.io/healthcheck-port: status-port
    alb.ingress.kubernetes.io/healthcheck-interval-seconds: "30"
    alb.ingress.kubernetes.io/healthy-threshold-count: "3"
    alb.ingress.kubernetes.io/unhealthy-threshold-count: "3"
    alb.ingress.kubernetes.io/loadbalancer: istio-public-alb
    alb.ingress.kubernetes.io/backend-protocol: HTTP
    alb.ingress.kubernetes.io/ssl-policy: ELBSecurityPolicy-FS-1-2-Res-2020-10
    alb.ingress.kubernetes.io/listen-ports: '[{"HTTP": 80}, {"HTTPS":443}]'
    # alb.ingress.kubernetes.io/actions.ssl-redirect: '443'
    alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:ap-south-1:948930947331:certificate/b2ab6c06-f3d4-4658-9dee-172b28b86e8e
    alb.ingress.kubernetes.io/subnets: subnet-0e9ff8366bfabb8dc,subnet-0a6a93e97bc05102d
    ingress.kind: external
    istio: istio-ingressgateway
spec:
  ingressClassName: alb
  rules:
  - host: "*.kanilebettu.in"
  - http:
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: istio-ingressgateway
              port:
                number: 80
